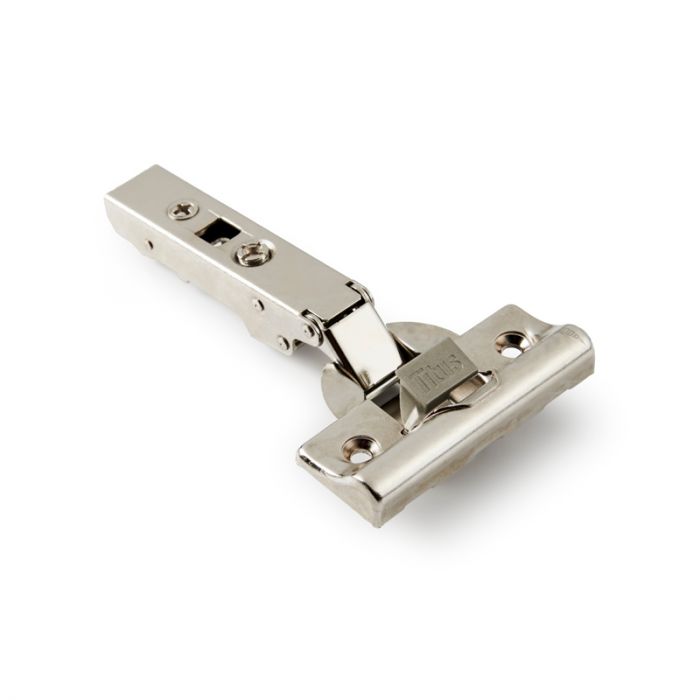

Hinge, Titus T-Type , Full Overlay 110°, 0mm, Glissando Soft Close, Screw-On

ZAR 48.00
In stock
SKU
451
Weight
0.08kg

Return Policy Info

Nationwide Shipping

Click-n-Collect

In stock

10 or fewer

Out of stock

More Information
Springfield
Bloemfontein
Chatsworth
East London
Little Falls
Margate
Gqeberha (Port Elizabeth)
Pietermaritzburg
Pinetown
Pretoria
Meadowdale
Mt Edgecombe
Centurion
Welkom
George
Xavier
Fourways
Boksburg
Montana
Sandton
Tokai
Newmarket
Nelspruit
Newcastle
Randburg
N1 City
Greenstone
Kimberley
Montague
Hillcrest
Umhlanga
Nasrec
Silver Lakes
Richards Bay
Willowbridge
Arbour Crossing
Somerset West
Wonderpark
Kariega (Uitenhage)
Sunningdale
Ballito
Paarl
Ottery
Vanderbijlpark
Princess Crossing
Brackenfell
Polokwane

'3Way' snap-on allows for intuitive hinge-to-plate mounting

Adjustments made easy with the two cams built into the hinge

Dimensions of the cup, 35mm drilling diameter for hinge cup / 11.7mm deep cup

Screw Hole Distance: 45mm

Installation Type: Screw On

Finish: Nickel Plated Steel

Hinge Opening: 110 Degree

Height Adjustment: +/- 2mm

Cam Side Adjustment: +3/-1mm

Cam Depth Adjustment: +4/-1mm

Adjustable damping
