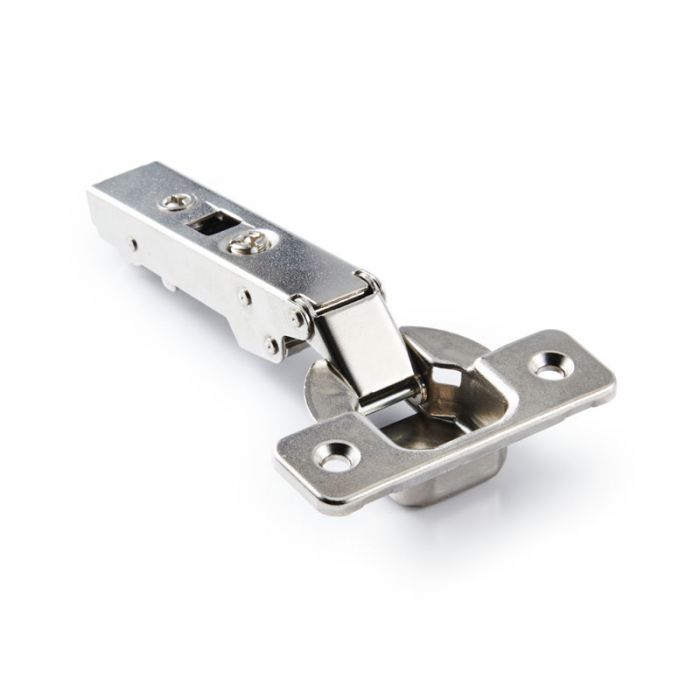

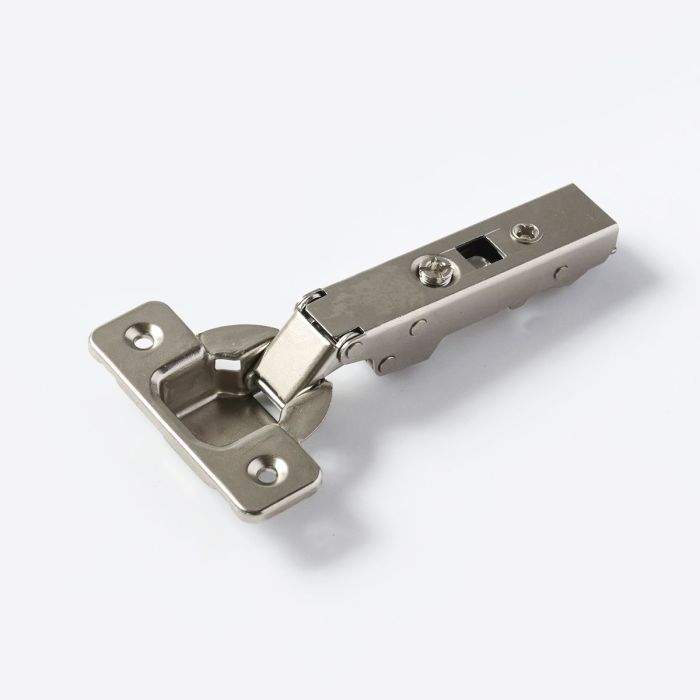

Hinge, Titus T-Type, Touch Open, Full Overlay 110°, 0mm, Screw-On

ZAR 32.00
In stock
SKU
468
Weight
0.06kg

In stock

10 or fewer

Out of stock

More Information
Springfield
Bloemfontein
Chatsworth
East London
Little Falls
Margate
Gqeberha (Port Elizabeth)
Pietermaritzburg
Pinetown
Pretoria
Meadowdale
Mt Edgecombe
Centurion
Welkom
George
Xavier
Fourways
Boksburg
Montana
Sandton
Tokai
Newmarket
Nelspruit
Newcastle
Randburg
N1 City
Greenstone
Kimberley
Montague
Hillcrest
Umhlanga
Nasrec
Silver Lakes
Richards Bay
Willowbridge
Arbour Crossing
Somerset West
Wonderpark
Kariega (Uitenhage)
Sunningdale
Ballito
Paarl
Ottery
Vanderbijlpark

For wooden doors without handles

'3Way' snap-on allows for intuitive hinge-to-plate mounting

Dimensions of the cup, 35mm drilling diameter for hinge cup / 11.7mm deep cup

Screw Hole Distance: 45mm

Type: Touch opening

Installation Type: Screw On

Arm Style: Cranking

Finish: Nickel Plated Steel

Hinge Opening: 110 Degree

Height Adjustment: +/- 2mm

Cam Side Adjustment: +3/-1mm

Cam Depth Adjustment: +/-1.5mm
